RevoConnect

The Revoconnect range of subsea connectors, joints, flanges and latches can be integrated in a wide range of intervention systems. They are designed to be streamlined, lightweight, efficient and simple to integrate and maintain.

SSTT Latch
Interventek’s API 17G validated subsea test tree (SSTT) latch is a hydraulically operated arrangement of locking elements which allows disconnection from the SSTT after well isolation. The latch is orientated on the upper SSTT ball valve profile during relatch operations by a two-stage alignment prior to landing out. There is a secondary unlatch facility that can be activated by closing the BOP pipe ram and pressurising down the choke and kill line to an accurately pre-set burst disc and shuttle arrangement.

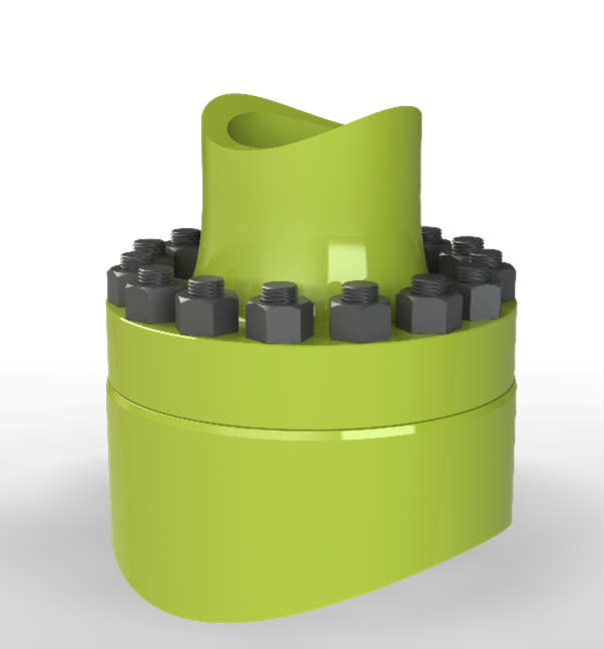

Flange Connection
A compact and lightweight, fully API 17G qualified flange connection, offering substantial envelope, capacity and functionality improvements in comparison to equivalent joints. Available as an in-riser or open-water 7.375” 10,000 psi, standard or slimline model. Preloaded connection to improve fatigue life. Dual sealing to assure pressure integrity. Ported to allow conveyance of hydraulic power.
