RevotekSV1
Open-Water Shear & Seal Valve

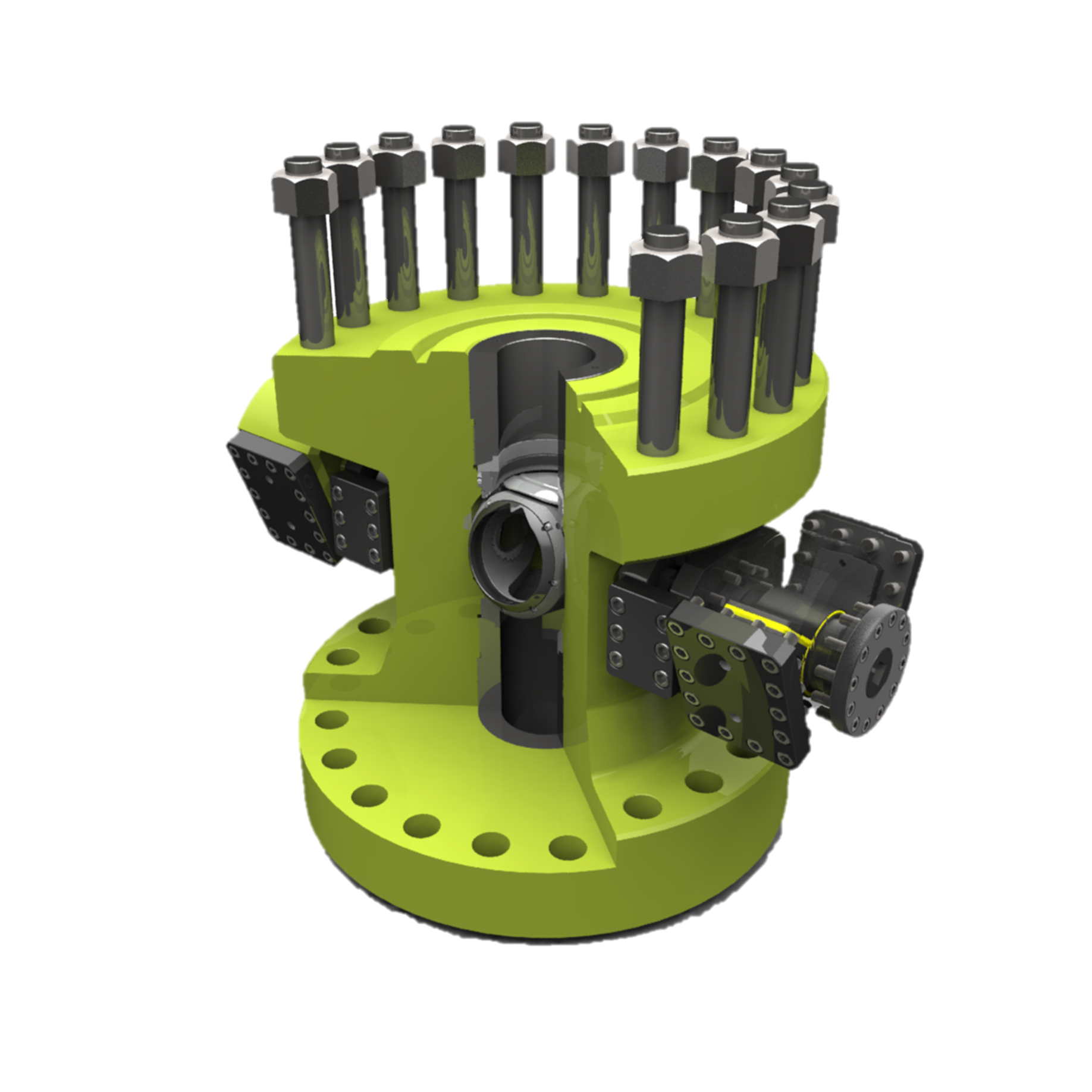

The RevotekSV1 open-water valve delivers all the benefits of the Revotek in-riser shear and seal valve in a robust structural housing suitable for the open water environment. It’s available in 10k, 15k and 20k psi options and single, dual or triple cavity configurations to suit all types of EDP/LRP and riser or riserless applications.
The Revotek open water valves are ultra-compact and lightweight to enable system size reduction and ease of handling and deployment. They’re suitable for vessels with low hook height and low weight lift capacity and allow manual handling through the moonpool.

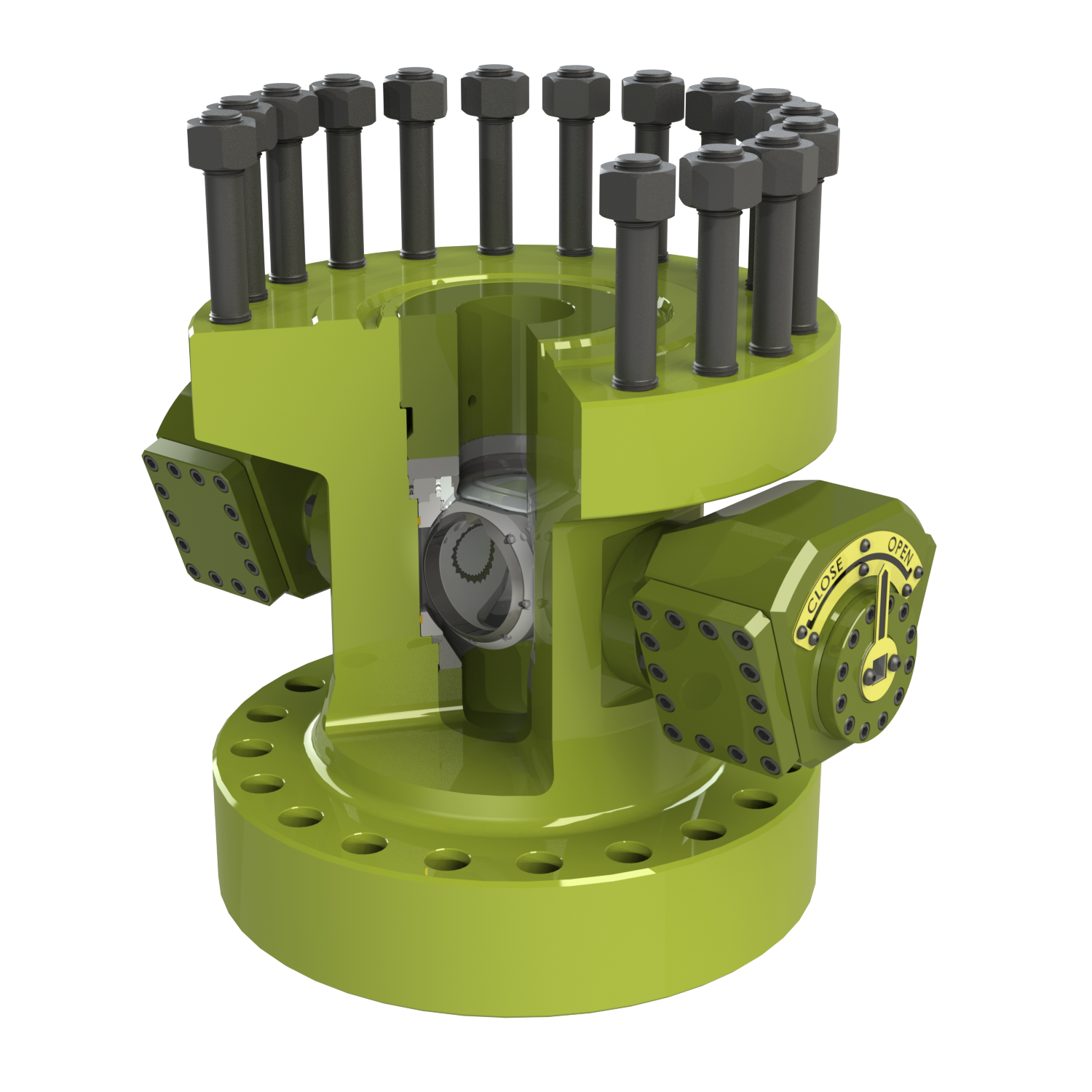

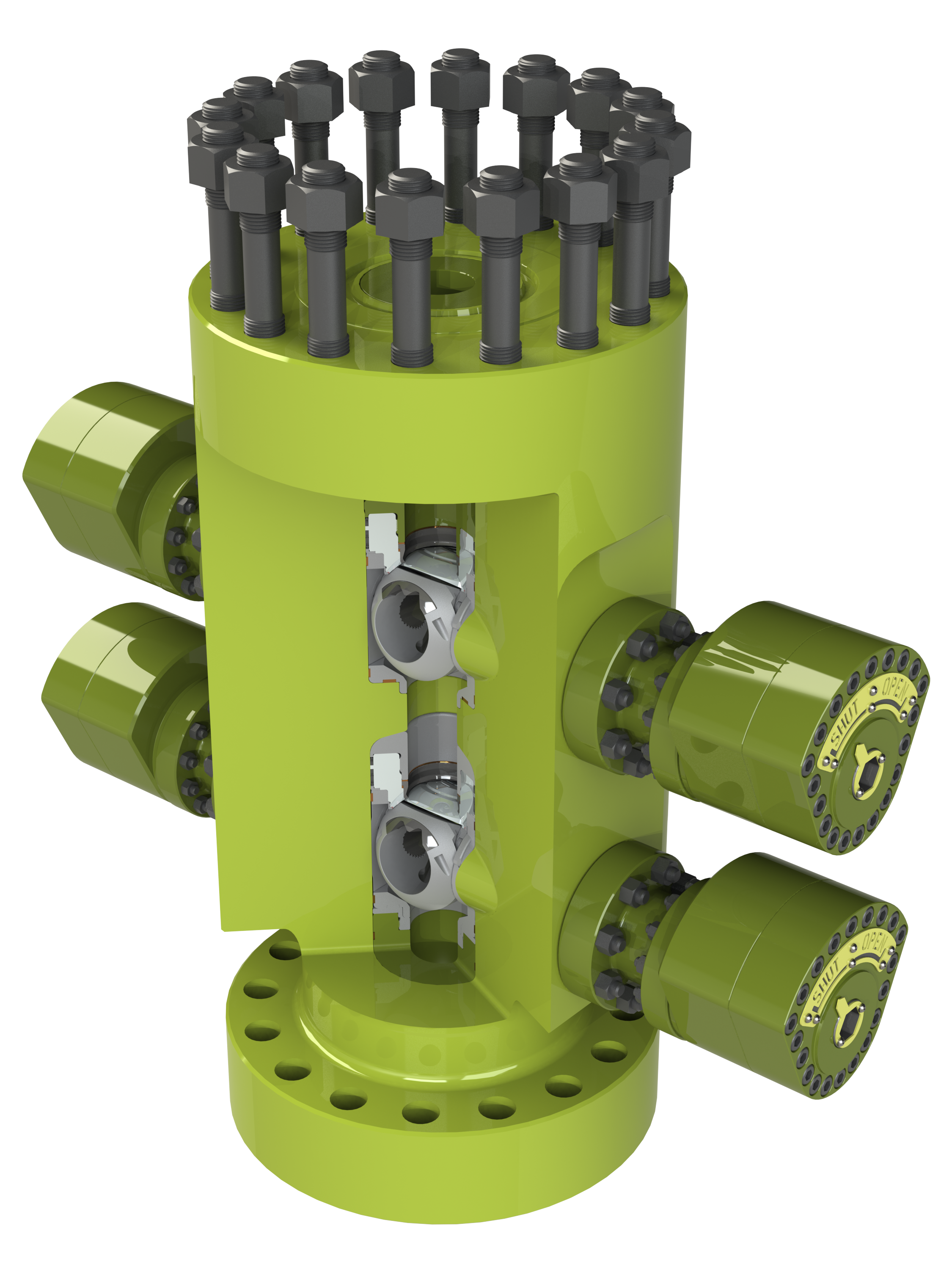

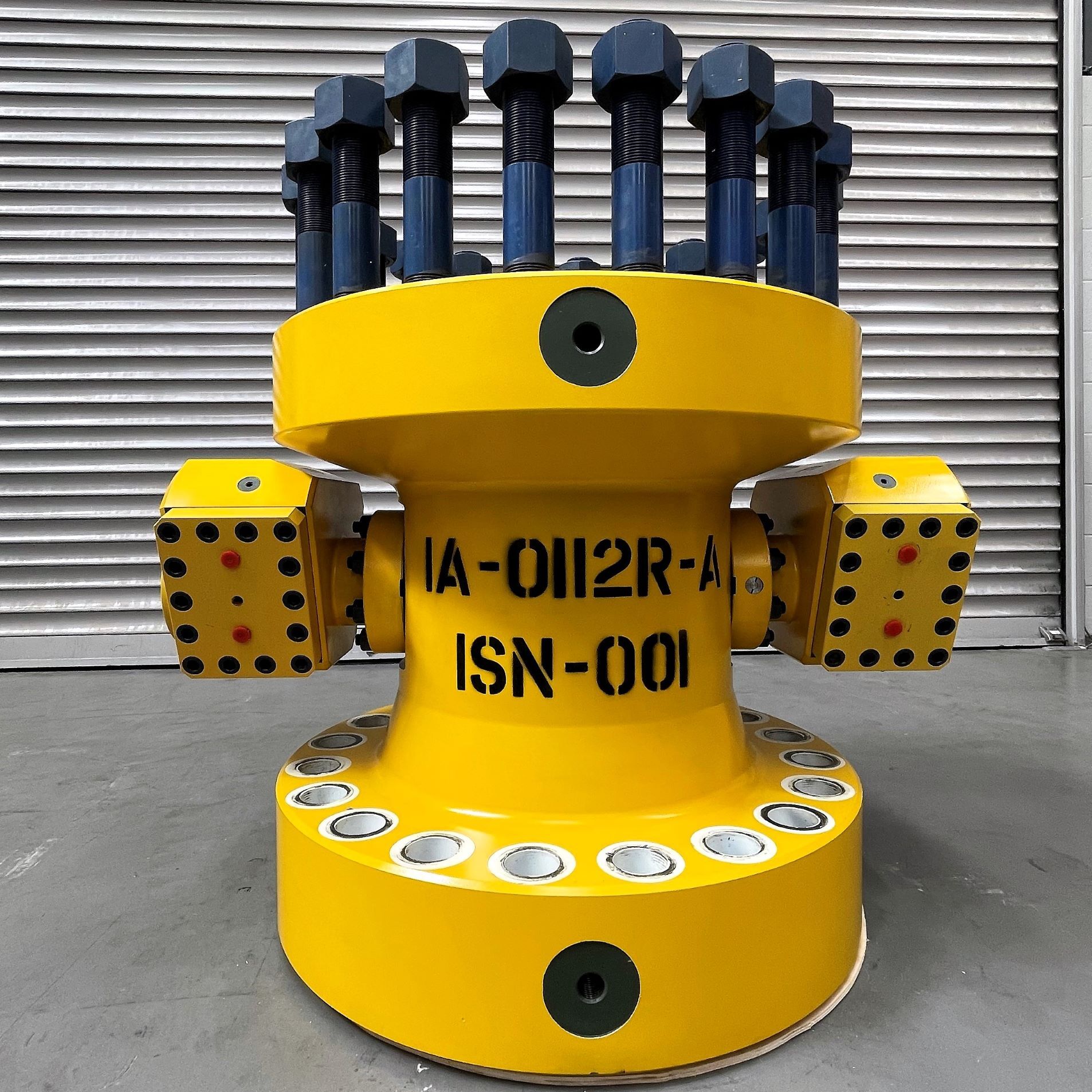

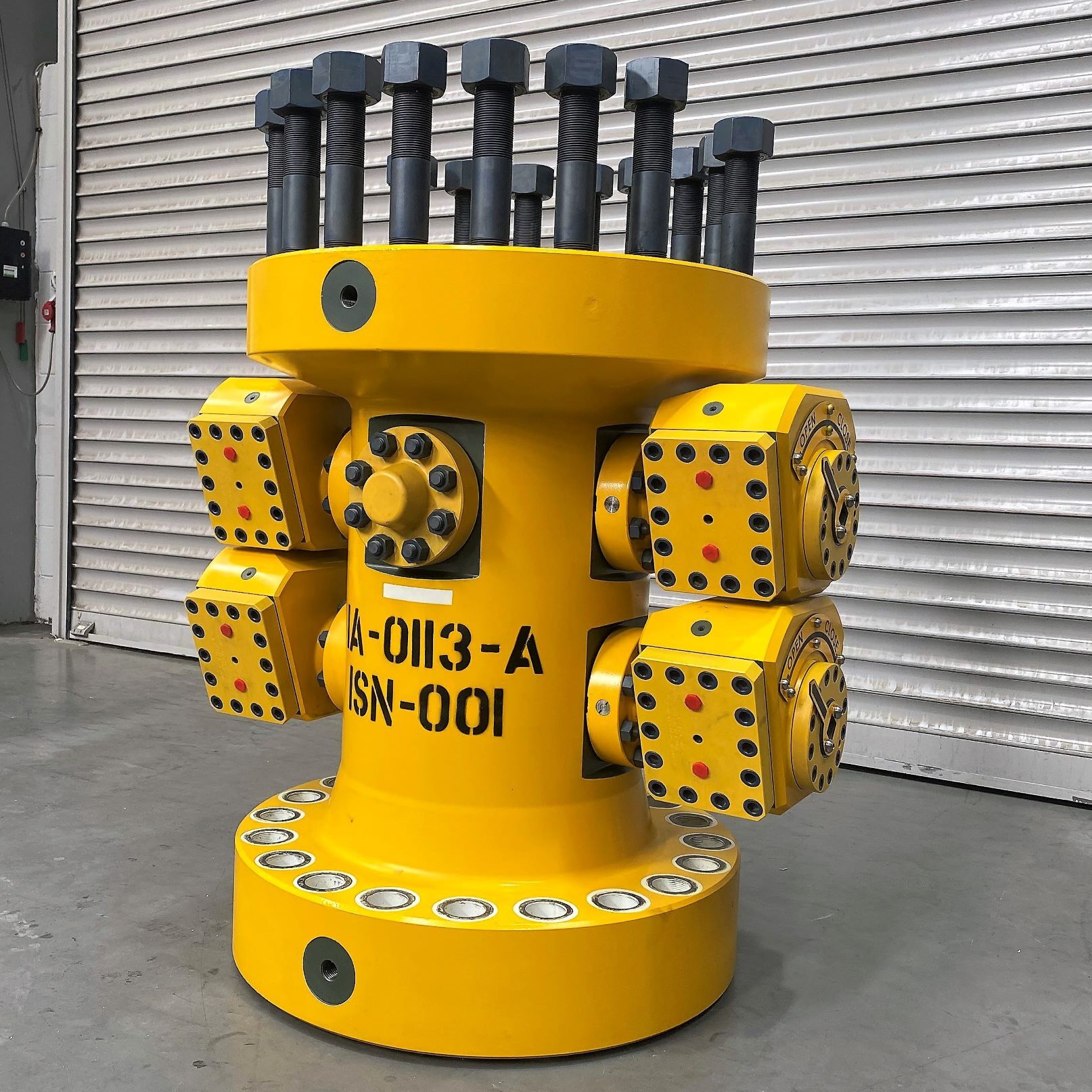

Single cavity devices can be configured to contain upper or lower well pressure for a retainer valve application and multi-cavity devices can be configured with multiple Revotek valves or bi-directional ball valves.
Features & Benefits
- Ultra-compact and lightweight
- Improved reliability with separate cutting and sealing components
- Pump-through capability
- API 17G qualified
- HPHT capability - 20,000 psi / 350oF
- Pre-loaded end connections for ease of integration, improvesd structural integrity and fatigue capacity
- Simplified components for ease of maintenance and redress
- Reduced cost of ownership
- Ultra-efficient, fractional turn rotary actuators - low fluid volume for reduced surface footprint, configurable for different hydraulic pressures (3K, 5K or 10K).
- External rotary actuators eliminate binding, maximise torque and avoid debris ingress
- Resilient well bore sealing
- Suitable for sour service deployment
- Interfaces available for annulus access, chemical injection and pressure and temperature monitoring
