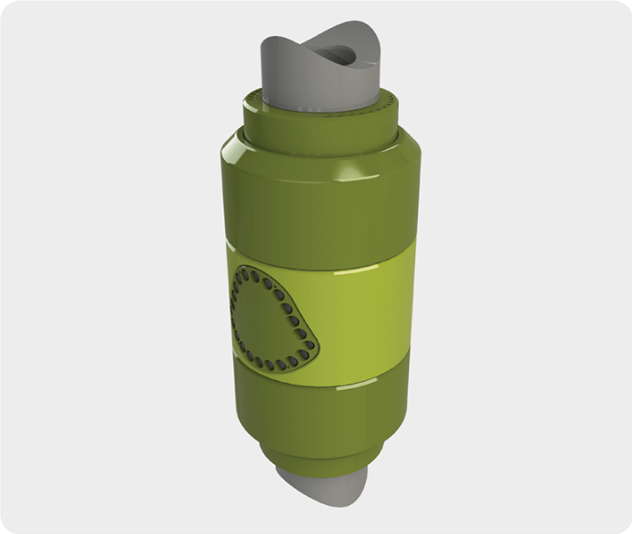

RevotekSV1
In-Riser Shear & Seal Valve

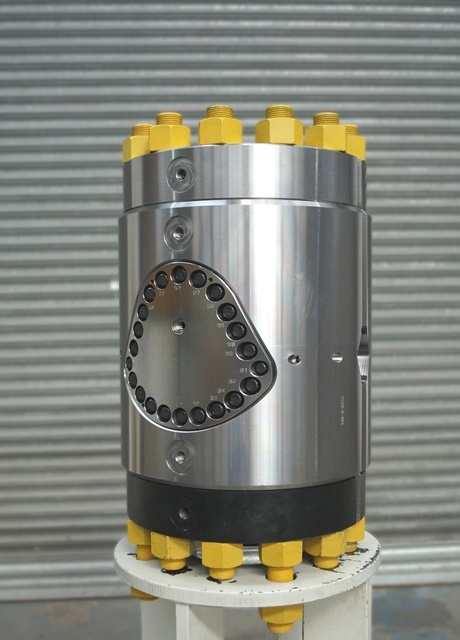

The API-17G 3rd edition qualified In-Riser Revolution shear-seal valve is available in a range of bore size and pressure ratings including: 7-3/8” x 10k, 6-1/8” x 15k, 6-3/8” x 15k and 5-1/8” x 20k plus a slimline 4-1/8” x 10k psi model.

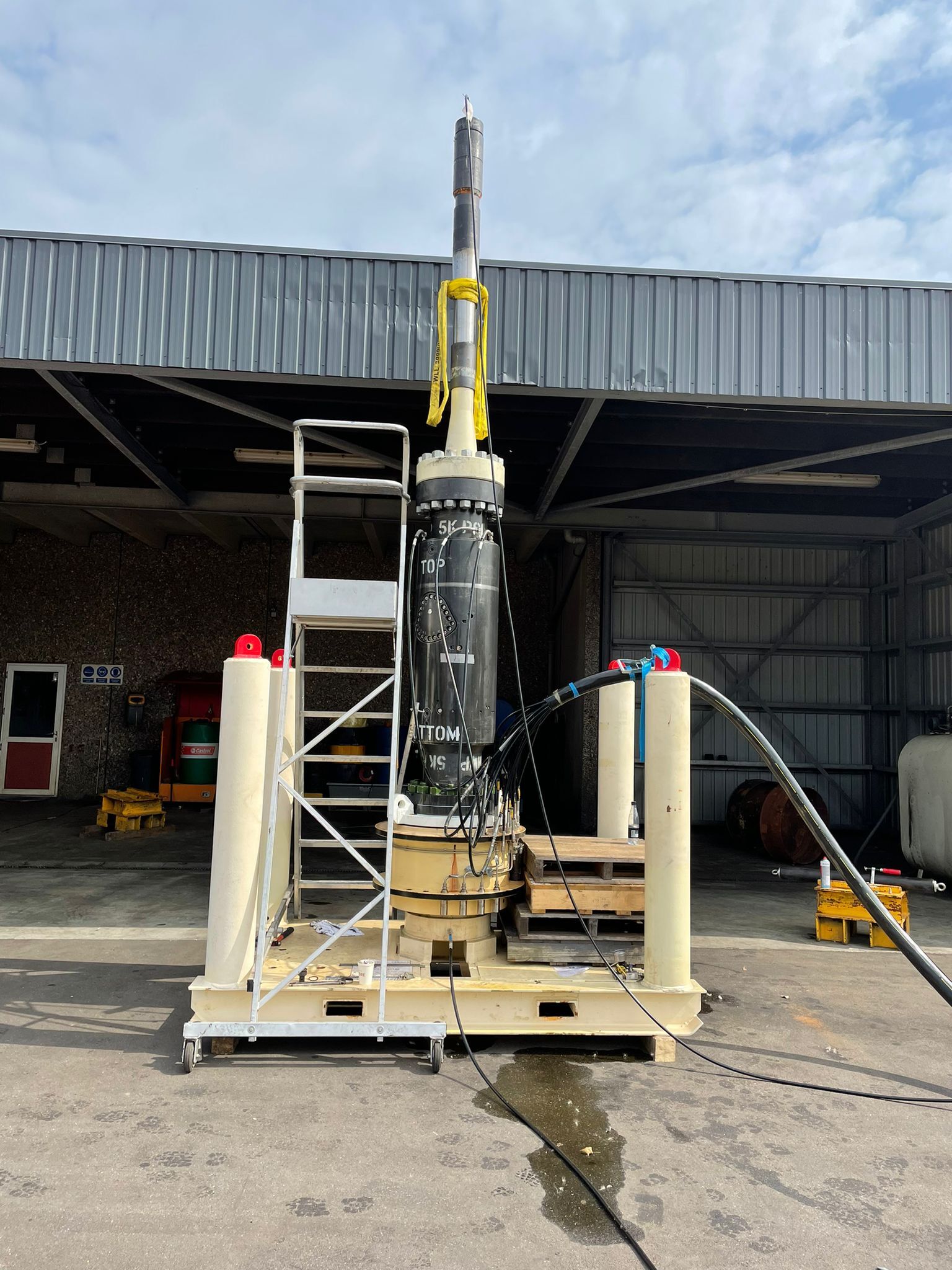

The optional PowerPlus function adds an integrated gas accumulator to deliver ultra-fast cutting and sealing ability in less than a second, ideal for gas well intervention.

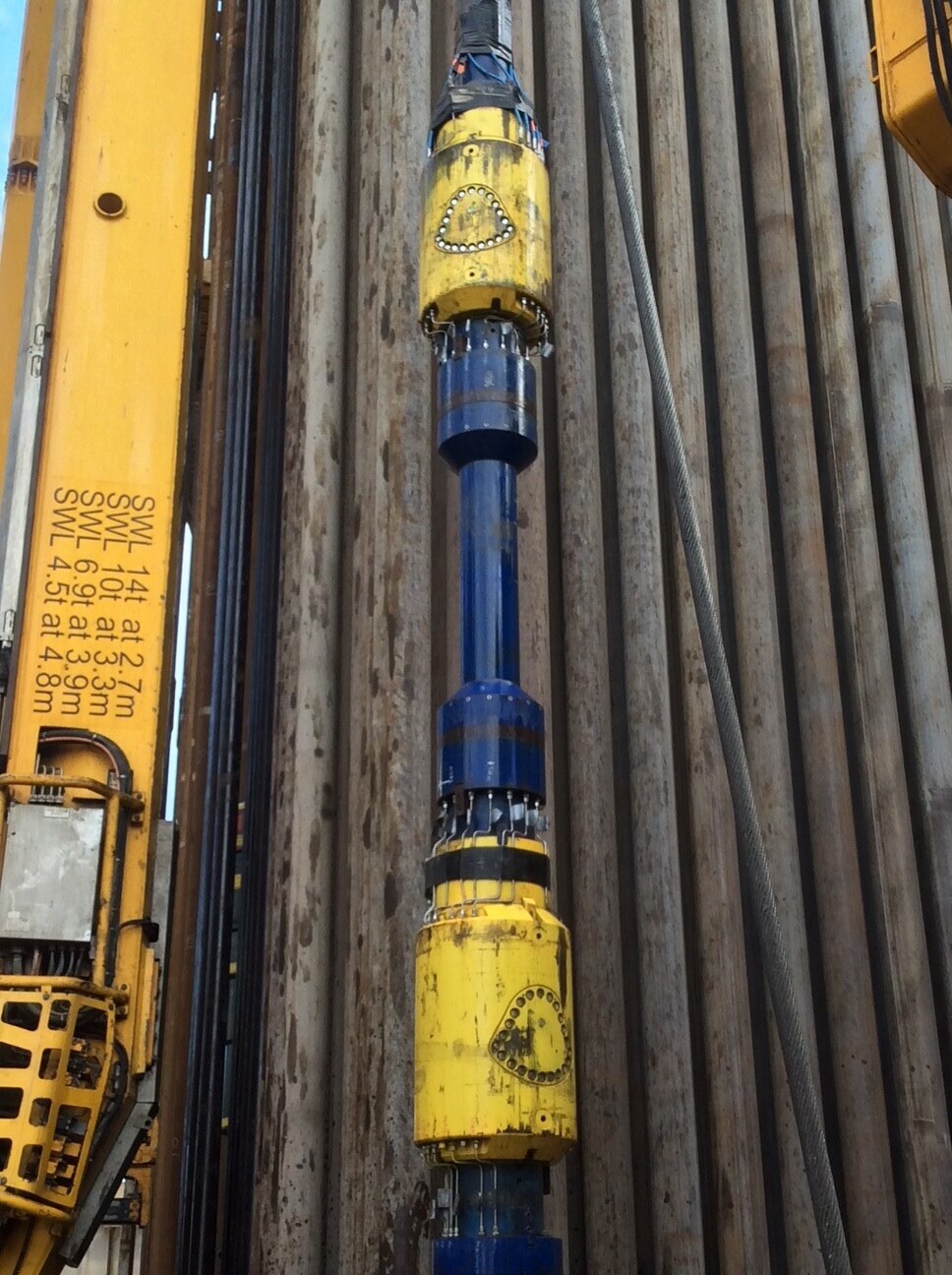

The in-riser shear-seal valve is modular and stackable and can be combined with our bidirectional ball valve and peripheral components to suit a range of applications.
Features & Benefits
- Unidirectional valve with pump-through capability
- Modular and stackable for bidirectional sealing and can be combined with bi-directional ball valves and fast-acting PowerPlus gas accumulator options

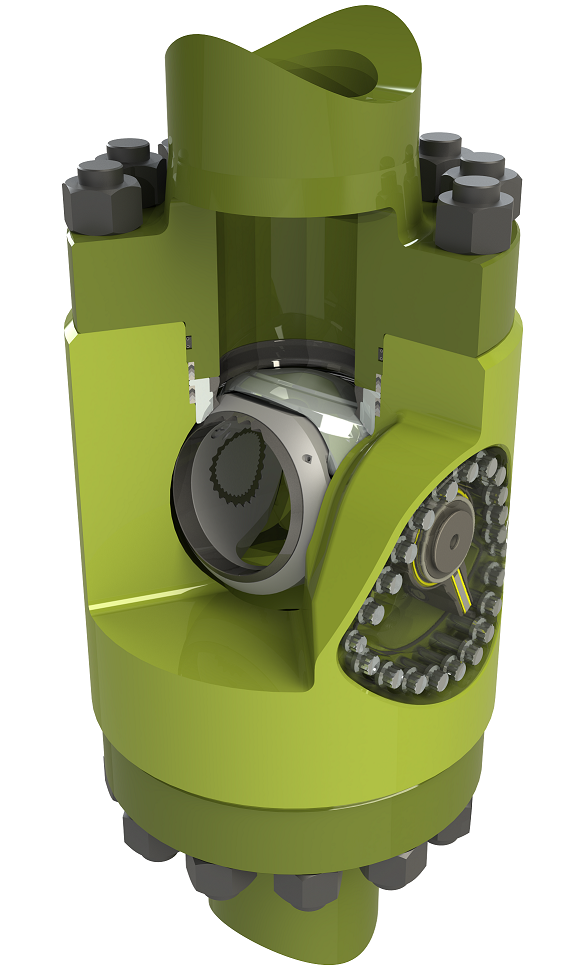

- Separate rotary cutting and sealing components to protect the seal and reduce the size of the operating envelope
- 70% less hydraulic fluid requirement enables surface equipment footprint reduction
- Compact & lightweight design
- Designed, built and qualified to 17G 3rd edition standards
